艦名
| 拉法葉級巡防艦/(La Fayette class)
|
承造國/承造廠
| 法國/Lorient Naval Dockyard
|
尺寸（公尺）
| 長125 寬15.4 吃水4
|
排水量（ton)
| 標準3230 滿載3600
|
動力系統/軸馬力
| CODAD雙併組合 SEMT-Pielstick 12 PA6 V 280 STC柴油機＊4/20800 雙軸大車葉推進CPP
|
航速（節）
| 25
|
續航力（海浬）
| 7000/15節 9000/12節
|
偵測/反制系統
| DRBV-26D木星-II二次元對空搜索雷達 海神Triton G搜索雷達 Thomson-CSF DRBV 15C海虎二式(Sea Tiger Mk.2)E/F頻對空/平面搜索雷達＊1 Racal 1229 DRBN 34A I頻導航/直昇機管制雷達＊2 Dassault ARBB-33 H/I/J頻電子反制系統 Thomson-CSF ARBR-21(DR-3000-S)電子支援系統 CSEE Dagaie Mk.2干擾絲發射器＊2
|
聲納
| Spherion艦體聲納 Alose/Lamproie拖曳聲納 |
射控/作戰系統
| Thompson-CSF TAVITAC 2000 (Senit.7)戰鬥系統 Thompson-CSF CTM整合光電/雷達射控系統(整合有Thompson-CSF Castor 2J I頻射控雷達、紅外線熱影像儀、雷射測距儀)＊1 Sagem TDS 90 VIGY光電偵測/瞄準系統＊1 DIBV-10吸血鬼(Vampire)紅外線追蹤系統 Syracuse 2衛星通訊天線(SATCOM) OPSMER決策支援系統 |
乘員
| 151，必要時可增加12名陸戰隊員
|
艦載武裝
| Mod 1968 CADAM II 100mm 55倍徑艦砲＊1 Giat 20FS 20mm機砲＊2 12.7mm機槍＊2 四聯裝雄風二型反艦飛彈發射箱二具 四聯裝MM-40飛魚反艦飛彈發射器＊2 40公釐L/70機砲 二門
MK-15方陣快砲一門
三聯裝MK-32魚雷發射管二具
Thomson-CSF八聯裝海響尾蛇CN-2短程防空飛彈發射器＊1(使用VT-1短程防空飛彈，艦上共儲有24枚) Dillon Areo 7.62mm火神機槍（2011年起加裝） |
艦載機
| AS-565或NFH-90反潛直昇機＊1 S-70C(M)反潛直昇機：1架
ETN突擊艇：2艘 |
民國80年光華二號計畫與法國簽署合，首艦並於民國81年2月1日在法國海軍造船局(DNC)洛陽造船廠開工，民國85年完成交艦儀式，
自法啟航經大西洋、巴拿馬運河、太平洋，5月18日返回我國，並於5月24日成軍，後續艦的命名以我國的各省會來命名。
http://www.youtube.com/watch?v=pqUUhZLod14
康定級艦的最大特色為其匿蹤化的艦體設計，全艦表面並沒有特別突昂的結構，大部分甲板機具皆已隱藏到船艦內，如其雄風
二型反艦飛彈發射箱亦藏入艦身，大面積的表面部分也傾斜正負10度角，避免複雜造型或是菱角結構，可分散雷達所射出的波段，
讓敵艦所能收到的雷達反射波減少。
全艦特別凸出部分僅有煙囪和桅杆部份，這部份也採用匿蹤設計，加上各處表層塗有反雷達反射的塗料，使艦艇在雷達截面積(RCS)極小。
http://www.youtube.com/watch?v=8jXrlM8p3pE
在2000年代初期，法國海軍開始利用拉法葉級做為平台，測試垂直發射的雲母(MICA)空對空飛彈艦載防空版，而此垂直發射系統就裝在
B砲位上。
如果預算允許，拉法葉級應該會換裝ARABEL/Aster-15並充實反潛系統，但2000年以來法國海軍經費一直不甚寬裕，21世紀初期的建軍
重點也已經擺在水平線飛彈驅逐艦、新一代梭魚級核子動力攻擊潛艦、凱旋級核子動力彈道飛彈潛艦、FMM多用途巡防艦以及西北風級
大型兩棲直昇機突擊艦，並將未來通用型水面作戰艦艇的重點放在FMM上，所以目前沒有提升拉法葉級的打算。
http://www.youtube.com/watch?v=JYyTcDnDR8o
拉法葉級的艦體採用了與傳統設計相較更加簡約的上層建築和角度艦體側面設計，再加上使用雷達訊號吸收材料使得雷達反射截面積顯著
減小；這種由木材與玻璃纖維混合製成的特殊材料擁有與鋼鐵相同的硬度但更輕並且耐火。
在拉法葉級巡防艦誕生之後，世界上越來越多的現代軍艦開始採用類似或相同的隱形技術原則來進行設計建造。
http://www.youtube.com/watch?v=o9DYTg1TdTM
拉法葉級還擁有高度現代化訊息處理能力，艦上所搭載的訊息處理系統可以管理所有通過艦載感測器所收集的訊息，而該系統也是艦上
操控中心的電子中樞。
·
拉法葉級安裝的武器並不多，包括艦首一門Mod 1968 CADAM II 100mm快砲、艦體中段兩組四聯裝MM-40飛魚(Exocet)反艦飛彈發射器或
四聯裝雄風二型反艦飛彈發射箱二具、艦橋後方左右各一的Giat 20FS 20mm機砲(每門射速720發/分，射程10km)，以及機庫上方一具
八聯裝海響尾蛇(Crotale Naval)CN-2短程防空飛彈發射器。
其中Mod 1968 CADAM II 快砲是此種火砲在1990年代推出的改良型，又稱為TC-100，最大射速78~80發/分，使用匿蹤構型的砲塔殼，
並強化機械可靠度。
而馬特拉航太(Aerospatiale-Matra)生產的飛魚反艦飛彈則堪稱法國最著名的海軍武器之一，曾經在福島戰爭以及兩伊戰爭中大出風頭；
目前最新的MM-40Block2仍採用火箭推進，飛行速度0.95馬赫，射程70km，具備165kg高爆彈頭，導引方式為中途慣性+終端主動雷達
尋標器。
各國新設計的艦艇開始大量的引用匿蹤技術和輕量化複合材料，而這些匿蹤技術無論是在抑制雷達波、紅外線訊號發散或發動機聲
噪訊號等方面大多運用了拉法葉級所採用的技術範疇。
然而匿蹤措施所付出的代價如以雷達匿蹤外型為例，必須盡量將武器裝備收入艦體、減少艦面上突出的裝備，這就意味著將犧牲更多
有限的艦內空間，並對於艦上許多裝備設置上造成不便。
此外向內傾斜的艦體造型會縮減可用的甲板空間，而後果自然也是艦體必須增加尺寸來容納足夠的裝備；而某些更極端的匿蹤設計
如向上收縮的艦首船舷，這將會減低船艦的抗浪性能，使海浪更容易沖上甲板。
附件: 800px-French_frigate_La_Fayette_(F-710).jpg (2015-5-25 22:33:43, 151.38 KB) / 下載次數 15
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQyNnw1YzY1NTBlZHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: An-S70-C-helicopter-takes-off-from-the-stern-of-a-Taiwanese-Lafayette-frigate-du.jpg (2015-5-25 22:33:49, 197.92 KB) / 下載次數 19
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQyN3w0YTYwZWU1ZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: boat niche.jpg (2015-5-25 22:33:50, 50.33 KB) / 下載次數 128
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQyOHxjNzUxY2ZlMHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: bulkhead.jpg (2015-5-25 22:33:51, 118.51 KB) / 下載次數 142
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQyOXw2YjVkNDY3ZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: castor 2J.jpg (2015-5-25 22:33:52, 59.45 KB) / 下載次數 142
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzMHw4MjE5MDY0MXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: cortes2.jpg (2015-5-25 22:33:53, 56.98 KB) / 下載次數 79
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzMXwxN2YyNzJkYXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: crotale naval.jpg (2015-5-25 22:33:54, 66.24 KB) / 下載次數 154
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzMnxiZDBhZGI3NnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: f710-2.jpg (2015-5-25 22:33:55, 68.56 KB) / 下載次數 19
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzM3w4N2ExZjYyZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: f711-kopya.jpg (2015-5-25 22:33:56, 60.18 KB) / 下載次數 73
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzNHxjYTI2YzEzNnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: f712-2.jpg (2015-5-25 22:33:57, 110.31 KB) / 下載次數 17
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzNXwwMGZmZDhjZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_Aconit_3.jpg (2015-5-25 22:33:58, 82.51 KB) / 下載次數 19
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzNnxiZTM1YWMyZXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_Aconit_4.jpg (2015-5-25 22:33:59, 72.76 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzN3wwMGU0OGU3MnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_Aconit_5.jpg (2015-5-25 22:34:00, 61.17 KB) / 下載次數 15
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzOHw4MjRhODc4MnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_Courbet_6.jpg (2015-5-25 22:34:01, 85.4 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQzOXxkMWI5MjczZXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_La_Fayette_1.jpg (2015-5-25 22:34:02, 104.17 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0MHw3ZDU3MjUzY3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_La_Fayette_2.jpg (2015-5-25 22:34:03, 89 KB) / 下載次數 14
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0MXwwNmUwMGZmOHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_La_Fayette_3.jpg (2015-5-25 22:34:04, 61.91 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0MnwwZDU5MGYxNnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_La_Fayette_4.jpg (2015-5-25 22:34:05, 56.03 KB) / 下載次數 15
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0NHxmMGRhOWJiNnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_La_Fayette_5.jpg (2015-5-25 22:34:06, 48.89 KB) / 下載次數 17
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0NXxmYTM4NjU2ZXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: Giat 20F2 20 mm guns.jpg (2015-5-25 22:34:07, 137.03 KB) / 下載次數 68
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0NnwzNGI4MTVhM3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: IMG_2884.jpg (2015-5-25 22:34:08, 61.18 KB) / 下載次數 111
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0N3w3OGQyYjYzM3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: la fayette class.jpg (2015-5-25 22:34:10, 154.55 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0OHwwMDMwYjc2NnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: La Fayette class F713 Aconit 02.jpg (2015-5-25 22:34:11, 103.63 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ0OXw1MGRjNTc2OXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: la fayette 00.gif (2015-5-25 22:34:13, 418.57 KB) / 下載次數 19
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1MHxlMjI0YmNjOHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: mooring.jpg (2015-5-25 22:34:14, 51.41 KB) / 下載次數 64
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1MXwwYmJhYTUyYnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: sam_3642b.jpg (2015-5-25 22:34:15, 175.33 KB) / 下載次數 14
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1MnxiNmE0OTVhYXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: SHIP_FFG_LaFayette_F710_lg.jpg (2015-5-25 22:34:17, 202.24 KB) / 下載次數 15
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1M3xmMWY4NTU1YnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: SHIP_FFG_LaFayette_F713_Aconit_Drydock_lg.jpg (2015-5-25 22:34:18, 185.9 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1NHwyMWYzYzQ1ZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: sw2_al_ryadh.jpg (2015-5-25 22:34:19, 10.22 KB) / 下載次數 58
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1NXw0NWEzMmYwZHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: th la fayette 01.jpg (2015-5-25 22:34:20, 57.4 KB) / 下載次數 93
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1NnxkMmEzZGFjY3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: th la fayette 02.jpg (2015-5-25 22:34:21, 62.74 KB) / 下載次數 71
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1N3xjNmRkNmMwYnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: th la fayette 03.jpg (2015-5-25 22:34:22, 43.54 KB) / 下載次數 88
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1OHxlYzFiMTU2MHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: US_Navy_110314-N-5085J-072_French_navy_La_Fayette-class_frigate_FS_Guepratte_(F7.jpg (2015-5-25 22:34:24, 508.56 KB) / 下載次數 16
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ1OXxhZDRjZjg0MHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: WNFR_39-55_m1968_Courbet_pic.jpg (2015-5-25 22:34:25, 101.62 KB) / 下載次數 15
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ2MHxmMDRiNTk4OXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 4303784769_6955e078b5_o.jpg (2015-5-25 22:34:51, 176.3 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ2Mnw4MzQ4MzQzZHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 4304514142_b7ddea2448_o.jpg (2015-5-25 22:34:58, 181.46 KB) / 下載次數 29
https://oursogo.com/forum.php?mod=attachment&aid=OTc1OTQ2M3xlMmYyOTVjZHwxNzc4MzYyMDM2fDB8MA%3D%3D
作者: 澗水藍 時間: 2015-5-26 08:25:09

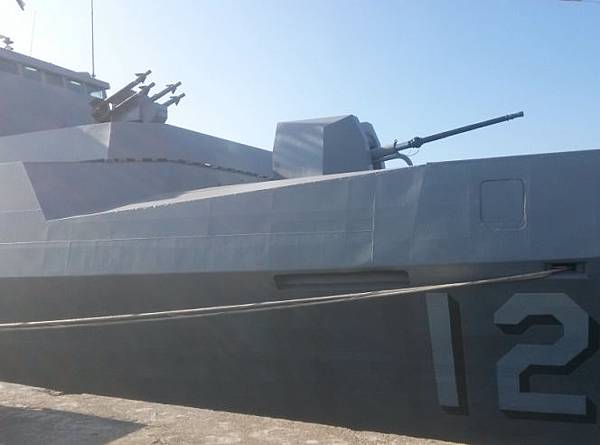

武昌艦上的實驗版砲塔
作者: borkun 時間: 2015-5-26 12:38:37
法方的拉法葉主砲後方(我們的裝的海欉樹飛彈)是沒有裝配任何武器的!我們的主垝位置也和法方的不同.我們還多了機庫上方左右兩邊40公厘快砲.感覺我們的武裝比較強~
作者: 格蘭士 時間: 2015-5-26 14:59:05
76砲塔的確要改裝一下.看起來才像樣
作者: cat8125900 時間: 2015-5-26 15:29:56
附件: 207_141189_508448.jpg (2015-5-26 15:29:38, 160.54 KB) / 下載次數 14
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MTI3NnxiNDk2NGY1Y3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 530 ~1.JPG (2015-5-26 15:29:40, 135.92 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MTI3N3w1MWI1MjFhN3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 1103%2~1.JPG (2015-5-26 15:29:40, 54.52 KB) / 下載次數 117
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MTI3OHw1YjdlNzA3ZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 1103%2~2.JPG (2015-5-26 15:29:41, 261.44 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MTI3OXw4YzYzMjQzOHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 1208%2~1.JPG (2015-5-26 15:29:42, 275.02 KB) / 下載次數 10
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MTI4MHwyMzUyODgyMHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 1208%2~2.JPG (2015-5-26 15:29:43, 162.52 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MTI4MXwyMDQyZDFlN3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 1208%2~3.JPG (2015-5-26 15:29:44, 231.98 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MTI4Mnw4NjE1YmZkMXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 3450277_0.jpg (2015-5-26 15:29:45, 352.19 KB) / 下載次數 16
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MTI4M3xmZDc5ZGE2M3wxNzc4MzYyMDM2fDB8MA%3D%3D
作者: cat8125900 時間: 2015-5-26 22:48:11
cat8125900 發表於 2015-5-26 15:29
附件: p1020505u.jpg (2015-5-26 22:48:03, 171.88 KB) / 下載次數 25
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMzNXw1NmNmYTQ2MXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: p1020482l.jpg (2015-5-26 22:48:01, 175.91 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMzM3wyZDJkMDdkMHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: p1020442rn.jpg (2015-5-26 22:47:58, 139.81 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMzMHw2YmVlOWZhYXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: XBT49is.jpg (2015-5-26 22:47:04, 317.81 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMwN3wwYTAwNzFkNXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: Taiwan-Lafayette-1208-承德Chen De.jpg (2015-5-26 22:47:01, 265.9 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMwNXxjZDQ0MDg3YnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: rOVJltH.jpg (2015-5-26 22:46:58, 575.66 KB) / 下載次數 10
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMwNHwwM2I4ZGQwZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: QHc5Nok.jpg (2015-5-26 22:46:55, 604.3 KB) / 下載次數 5
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMwM3xlYTA4ZTk2MHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: PPeuI9X.jpg (2015-5-26 22:46:53, 642.93 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMwMXwzMWY5YzMzOHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: PopEEmv.jpg (2015-5-26 22:46:49, 294.69 KB) / 下載次數 15
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzMwMHw4Njc3MDVmMXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: La Fayette-class frigate-1207-武昌Wu-Chang.jpg (2015-5-26 22:46:47, 307.38 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI5OHw3ZjQ0MWI4ZHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: l8r98o2.jpg (2015-5-26 22:46:44, 489.19 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI5N3xlYjQwNWNmYXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: ff1205-2.jpg (2015-5-26 22:46:41, 107.86 KB) / 下載次數 9
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI5NXxiN2ZiNzZlNHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: DSC06569.JPG (2015-5-26 22:46:39, 202.8 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI5NHw0MzNlM2NkM3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: DSC06563.JPG (2015-5-26 22:46:37, 206.71 KB) / 下載次數 19
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI5MnwwNGYwYmNmYnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: DSC04332.JPG (2015-5-26 22:46:36, 26.39 KB) / 下載次數 123
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI5MXxhNmM5Y2JjZXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 7250169432_0bf2423f08.jpg (2015-5-26 22:46:35, 64.35 KB) / 下載次數 78
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI5MHxhODJiMTJmM3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 1208 承德艦 DSC05839.JPG (2015-5-26 22:46:33, 15.83 KB) / 下載次數 57
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI4OHw3ZTUzNTU2MXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 8uV0mk0.jpg (2015-5-26 22:46:31, 612.27 KB) / 下載次數 18
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI4N3w2ZTAzZmZhY3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 5CITcaF.jpg (2015-5-26 22:46:28, 469.52 KB) / 下載次數 15
https://oursogo.com/forum.php?mod=attachment&aid=OTc2MzI4Nnw1MGIzOWExNnwxNzc4MzYyMDM2fDB8MA%3D%3D
作者: cat8125900 時間: 2015-5-27 23:16:15
拉法葉級(La Fayette class)飛彈巡防艦 特典~
附件: 800px-Crotale-Surcouf-IMG_5792.jpg (2015-5-27 23:15:01, 70.29 KB) / 下載次數 31
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY1NHwxOWE2OWNiNXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 2321117510_256e6a9da0_b.jpg (2015-5-27 23:15:03, 168.66 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY1NXw5NmEwNWZjMHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: alriyadh_7.jpg (2015-5-27 23:15:04, 29.36 KB) / 下載次數 67
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY1Nnw4Y2E2ZTE5OXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: fregate-lafayette.jpg (2015-5-27 23:15:05, 104.33 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY1N3xmZDQ1ZTllNHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: FS_La_Fayette_1.jpg (2015-5-27 23:15:06, 104.17 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY1OHwxMDZiNDAxY3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: ft74585144.jpg (2015-5-27 23:15:08, 73.49 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY1OXwxNzFkYTQ3N3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: Guépratte_3.jpg (2015-5-27 23:15:10, 478.88 KB) / 下載次數 30
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2MHxmY2ZlMDRmM3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: Guepratte_p1150203.jpg (2015-5-27 23:15:13, 674.09 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2MXwxYzA5YTY1MnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: LaFay1045title.jpg (2015-5-27 23:15:14, 102.95 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2MnwwYzlkNGEwY3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: lafayette1.jpg (2015-5-27 23:15:15, 45.28 KB) / 下載次數 61
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2M3w3ZGFhYzUwZHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: lafayette3.jpg (2015-5-27 23:15:17, 64.38 KB) / 下載次數 121
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2NHxhNjgwZmZkNXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: lafayette4.jpg (2015-5-27 23:15:18, 43.79 KB) / 下載次數 72
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2NXw4MzUwNmZjYXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: lafayette5.jpg (2015-5-27 23:15:19, 28.17 KB) / 下載次數 112
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2Nnw1MzE4Yjk5YnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: lafayette7.jpg (2015-5-27 23:15:21, 65.5 KB) / 下載次數 79
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2N3w5OWM4OTM0OHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: lafayette8.jpg (2015-5-27 23:15:22, 60.87 KB) / 下載次數 73
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2OHw4YjZkM2M1M3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: original_content.jpg (2015-5-27 23:15:23, 30.24 KB) / 下載次數 97
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY2OXwzOThkNzQ5NnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: p01b.jpg (2015-5-27 23:15:24, 24.03 KB) / 下載次數 41
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3MHwyN2I3Y2FlYnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_00.jpg (2015-5-27 23:15:25, 65.08 KB) / 下載次數 159
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3MXw2YjAxZDk2NnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_01.jpg (2015-5-27 23:15:26, 50 KB) / 下載次數 52
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3Mnw4YjI2NzM0MXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_02.jpg (2015-5-27 23:15:27, 27.03 KB) / 下載次數 82
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3M3xlZDhhMzdlZXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_03.jpg (2015-5-27 23:15:28, 34.05 KB) / 下載次數 92
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3NHxjYTAzYmNlN3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_04.jpg (2015-5-27 23:15:30, 46.69 KB) / 下載次數 84
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3NXw3MGExOTFkM3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_05.jpg (2015-5-27 23:15:31, 25.53 KB) / 下載次數 93
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3NnxhYTQ5NjZjNXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_06.jpg (2015-5-27 23:15:32, 26.6 KB) / 下載次數 185
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3N3wxNWU0ODg4OXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_07.jpg (2015-5-27 23:15:33, 38.14 KB) / 下載次數 105
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3OHwzZjg1ZjdkYnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: port2_08.jpg (2015-5-27 23:15:34, 24.35 KB) / 下載次數 162
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY3OXxlZDhhZWY3NHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: r.jpg (2015-5-27 23:15:35, 35.62 KB) / 下載次數 119
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY4MHwxZTZlOTRkM3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: RoCFFLaFayette_KANGDING1.gif (2015-5-27 23:15:35, 14.48 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY4MXxjZGEwODU4MHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: rocnkangdingclass.jpg (2015-5-27 23:15:37, 156.5 KB) / 下載次數 16
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY4MnwwMGZkYjk3OHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: SeaChaparralTaiwannavy1.jpg (2015-5-27 23:15:39, 74.3 KB) / 下載次數 74
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY4M3xlZWEwYTVjMnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: taiwan-lafaye.jpg (2015-5-27 23:15:40, 81.46 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY4NHxkMWU0NWI4OHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: WNFR_2cm-90_Giat_La_Fayette_pic.jpg (2015-5-27 23:15:41, 43.04 KB) / 下載次數 98
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY4NXw0Yzg1NDAyOXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: WNFR_2cm-90_Giat_M621_pic.jpg (2015-5-27 23:15:42, 17.21 KB) / 下載次數 63
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY4N3xmYjVhNTBkNXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: WNFR_2cm-90_Giat_M693_pic.jpg (2015-5-27 23:15:42, 36.55 KB) / 下載次數 109
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY4OHxmMTMyZjA5ZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 17323089.jpg (2015-5-27 23:16:10, 162.6 KB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY5MHxjMGM1OTYxYXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 30269718.jpg (2015-5-27 23:16:12, 146.38 KB) / 下載次數 30
https://oursogo.com/forum.php?mod=attachment&aid=OTc2NzY5MXwzODQ5YTFhMnwxNzc4MzYyMDM2fDB8MA%3D%3D
作者: cat8125900 時間: 2015-5-28 13:12:06
本帖最後由 cat8125900 於 2015-5-28 15:17 編輯
cat8125900 發表於 2015-5-27 23:16
拉法葉級(La Fayette class)飛彈巡防艦 特典~
各款匿蹤設計艦砲~
附件: 拉法葉海外版新型砲塔.jpg (2015-5-28 13:11:59, 46.81 KB) / 下載次數 86
https://oursogo.com/forum.php?mod=attachment&aid=OTc2OTc0Nnw4ZjY0NmQ0N3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 陀江艦的新型砲塔.jpg (2015-5-28 13:12:00, 157.29 KB) / 下載次數 11
https://oursogo.com/forum.php?mod=attachment&aid=OTc2OTc0N3wyNjZjOWQ4M3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 1417082409-1823120240_n.jpg (2015-5-28 13:11:58, 47.46 KB) / 下載次數 69
https://oursogo.com/forum.php?mod=attachment&aid=OTc2OTc0NXwwNTlmMDgwMnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 康定級的試作型砲塔.jpg (2015-5-28 13:12:01, 32.98 KB) / 下載次數 84
https://oursogo.com/forum.php?mod=attachment&aid=OTc2OTc0OHw5ZmJlNzVmZnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 127388_medium.jpg (2015-5-28 13:11:58, 50.55 KB) / 下載次數 77
https://oursogo.com/forum.php?mod=attachment&aid=OTc2OTc0NHxjNzNmZTVhNnwxNzc4MzYyMDM2fDB8MA%3D%3D
作者: cat8125900 時間: 2015-5-28 20:45:27
cat8125900 發表於 2015-5-28 13:12
各款匿蹤設計艦砲~
參考資料用: 美國海軍 勃克級驅逐艦匿蹤艦砲射擊照片~
附件: 800px-thumbnail.jpg (2015-5-28 20:45:05, 107.3 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc3MDY0NXxkZjY1MjY1NnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 130306-N-BX824-046.jpg (2015-5-28 20:45:07, 1.05 MB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc3MDY0Nnw5ZGNiYWZhMXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 130307-N-ZL691-003.jpg (2015-5-28 20:45:11, 1.03 MB) / 下載次數 16
https://oursogo.com/forum.php?mod=attachment&aid=OTc3MDY0N3wzMzFjNGIxN3wxNzc4MzYyMDM2fDB8MA%3D%3D
附件: 970416-N-4142G-002.jpg (2015-5-28 20:45:13, 421.25 KB) / 下載次數 15
https://oursogo.com/forum.php?mod=attachment&aid=OTc3MDY0OHwxM2JlYWZhZHwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: burke_1.jpg (2015-5-28 20:45:16, 1.4 MB) / 下載次數 7
https://oursogo.com/forum.php?mod=attachment&aid=OTc3MDY0OXxhNDg2YjRhYnwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: military-exercises.jpg (2015-5-28 20:45:19, 1.82 MB) / 下載次數 13
https://oursogo.com/forum.php?mod=attachment&aid=OTc3MDY1MHw2NDdjYWUyNXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: MK-38 25mm machine gun.jpg (2015-5-28 20:45:21, 152.85 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc3MDY1MXwwMDY5OTVkYXwxNzc4MzYyMDM2fDB8MA%3D%3D
附件: navy-gun-photo-free-public-domain-120207-N-AP176-083.jpg (2015-5-28 20:45:23, 274.21 KB) / 下載次數 12
https://oursogo.com/forum.php?mod=attachment&aid=OTc3MDY1Mnw2ZmNiZGU2YXwxNzc4MzYyMDM2fDB8MA%3D%3D
作者: cat8125900 時間: 2015-5-28 21:03:44
cat8125900 發表於 2015-5-28 20:45
參考資料用: 美國海軍 勃克級驅逐艦匿蹤艦砲射擊照片~
127mm MK45 Mod 4 Naval Main Gun ~
http://www.youtube.com/watch?v=u9Sl5AiFk7g
http://www.youtube.com/watch?v=SusumfLtYZM
http://www.youtube.com/watch?v=YGkOLFIfoag
http://www.youtube.com/watch?v=fiMEUQZp7vE
Mk 38 Mod 2 25mm Machine Gun System~
http://www.youtube.com/watch?v=ZDOqngpv1Us
| 歡迎光臨 SOGO論壇 (https://oursogo.com/) |
Powered by OURSOGO.COM |
